Explore RF elements WB GO antennas for 5 and 6 GHz networks. Compare SH30WB-GO, SH60WB-GO, and SH90WB-GO, and connect with our team to find your fit.
WISP deployments need antennas that match the coverage area, help manage interference, and fit the project budget. The RF elements WB GO Series brings those priorities together with 5 and 6 GHz support, predictable symmetrical beam patterns, and suppressed side lobes that help reduce unwanted signals outside the intended sector. With three beamwidths and practical mounting features, the series gives operators options for focused sectors, balanced coverage, and wider local access—all designed for cost-sensitive deployments.
SH30WB-GO: Focused Coverage
The SH30WB-GO is the narrowest option in the lineup, pairing a nominal 30° symmetrical beam with the series’ highest gain: 18 dBi from 4900–6200 MHz and 20 dBi from 6200–7200 MHz. Its tighter pattern concentrates coverage within a smaller angle, making it suited to high-density access point clusters and co-located sectors where precise coverage control matters.

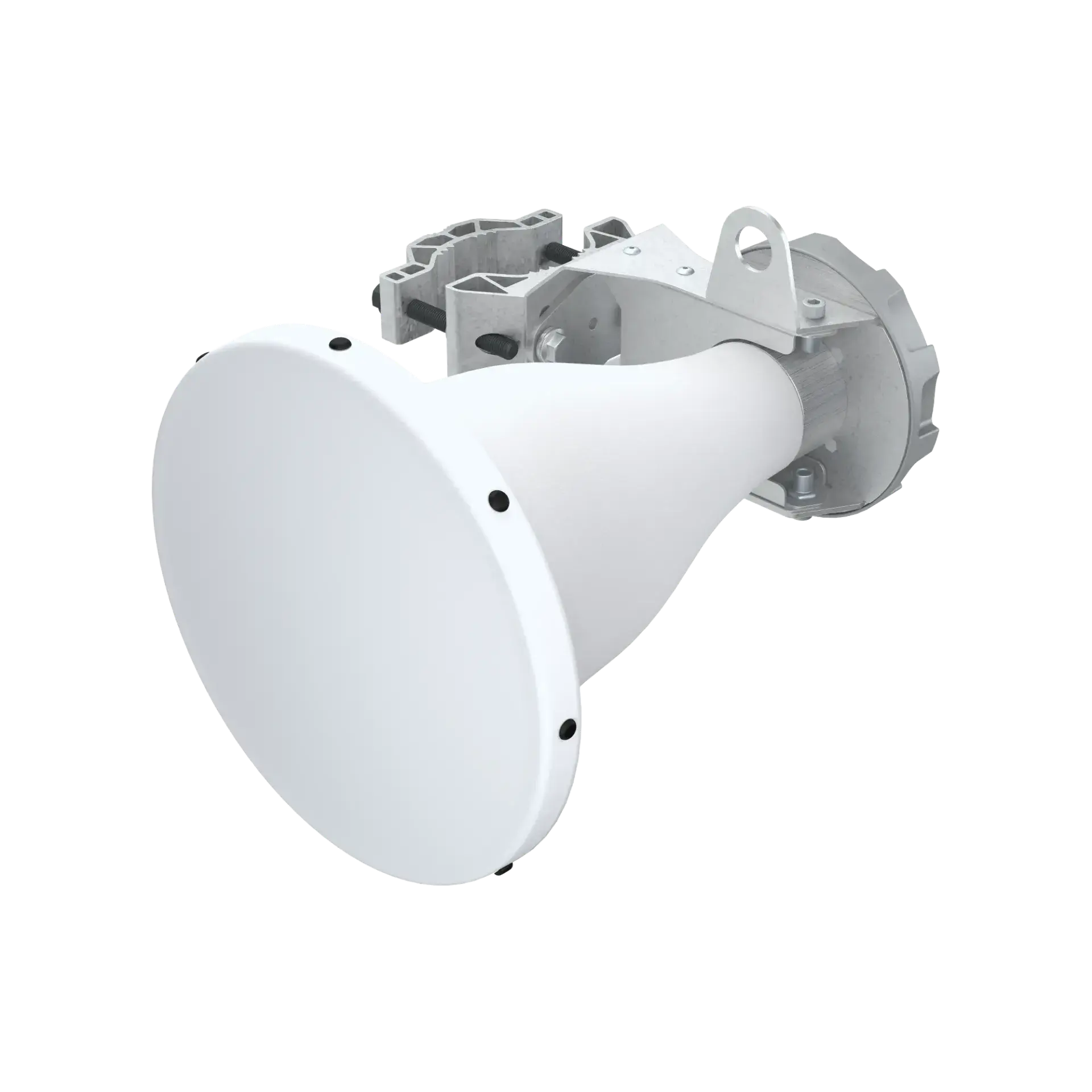

RF Elements SH30WB-GO Wideband Symmetrical Horn Antenna
RFE-SH30WB-GO
$ 206.25
- Frequency range: 4900–7200 MHz
- Gain: 18 dBi at 4900–6200 MHz; 20 dBi at 6200–7200 MHz
- Weight: 2.0 kg
For sites that need a concentrated coverage footprint, the SH30WB-GO combines the series’ highest gain with a symmetrical pattern and attenuated side lobes.
SH60WB-GO: Balanced Sector Coverage
The SH60WB-GO provides a middle ground between a focused sector and a wider coverage footprint. Its nominal 60° symmetrical beam delivers similar horizontal and vertical coverage, while its specified 13 dBi gain across 4900–7200 MHz supports operation throughout the antenna’s wideband frequency range.

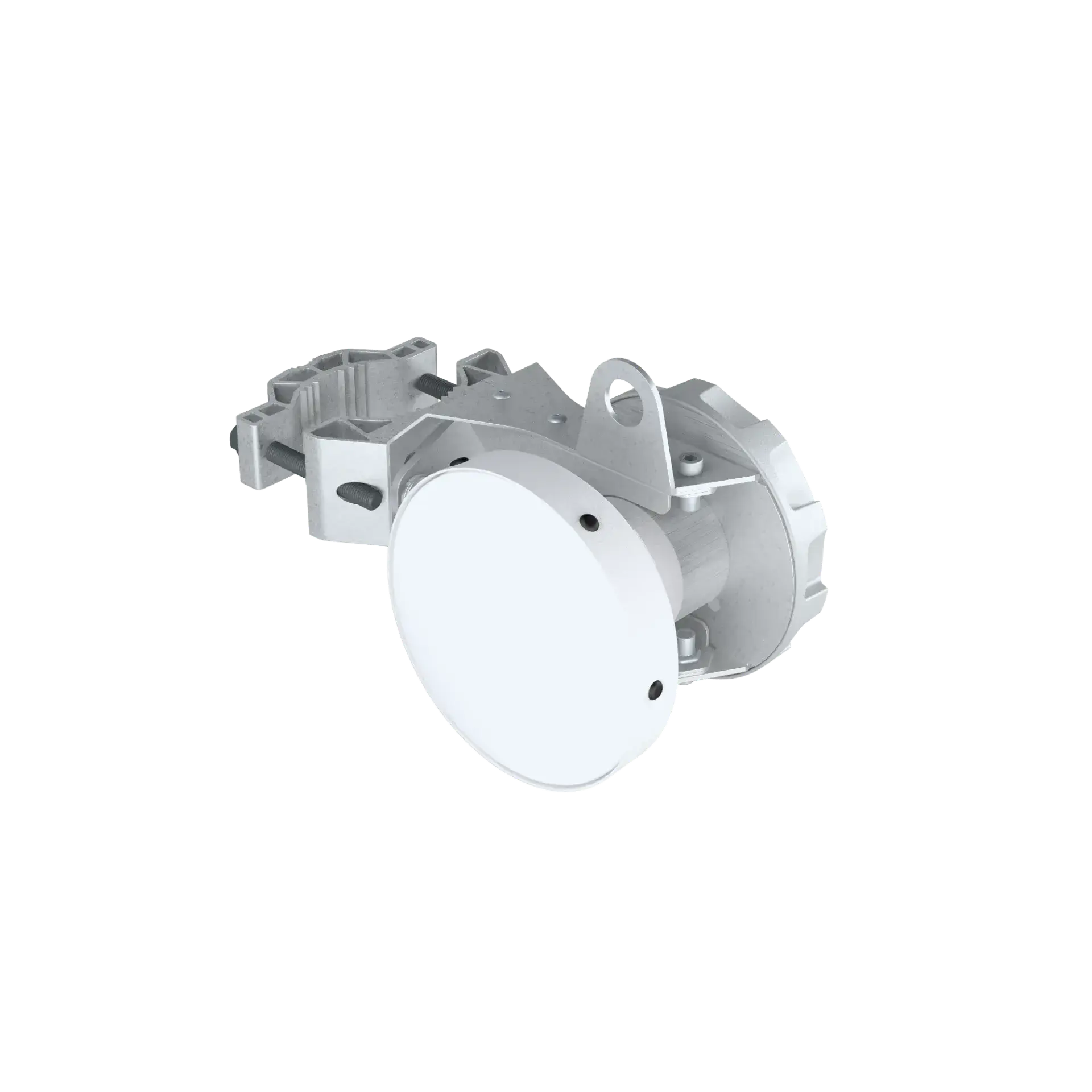

RF Elements SH60WB-GO Wideband Symmetrical Horn Antenna
RFE-SH60WB-GO
$ 173.75
- Frequency range: 4900–7200 MHz
- Gain: 13 dBi
- Weight: 1.3 kg
This model gives operators broader coverage than the 30° option while retaining the symmetrical horn pattern and suppressed side lobes. Its compact construction also helps keep tower weight and wind loading low.
SH90WB-GO: Wider Local Coverage
The SH90WB-GO offers the widest nominal beam in the series at 90°, making it suited to MicroPoPs and selected outdoor Wi-Fi deployments that need broader coverage over a defined local area. It provides 10 dBi gain from 4900–6200 MHz and 11 dBi from 6200–7200 MHz, pairing wide angular coverage with moderate gain.

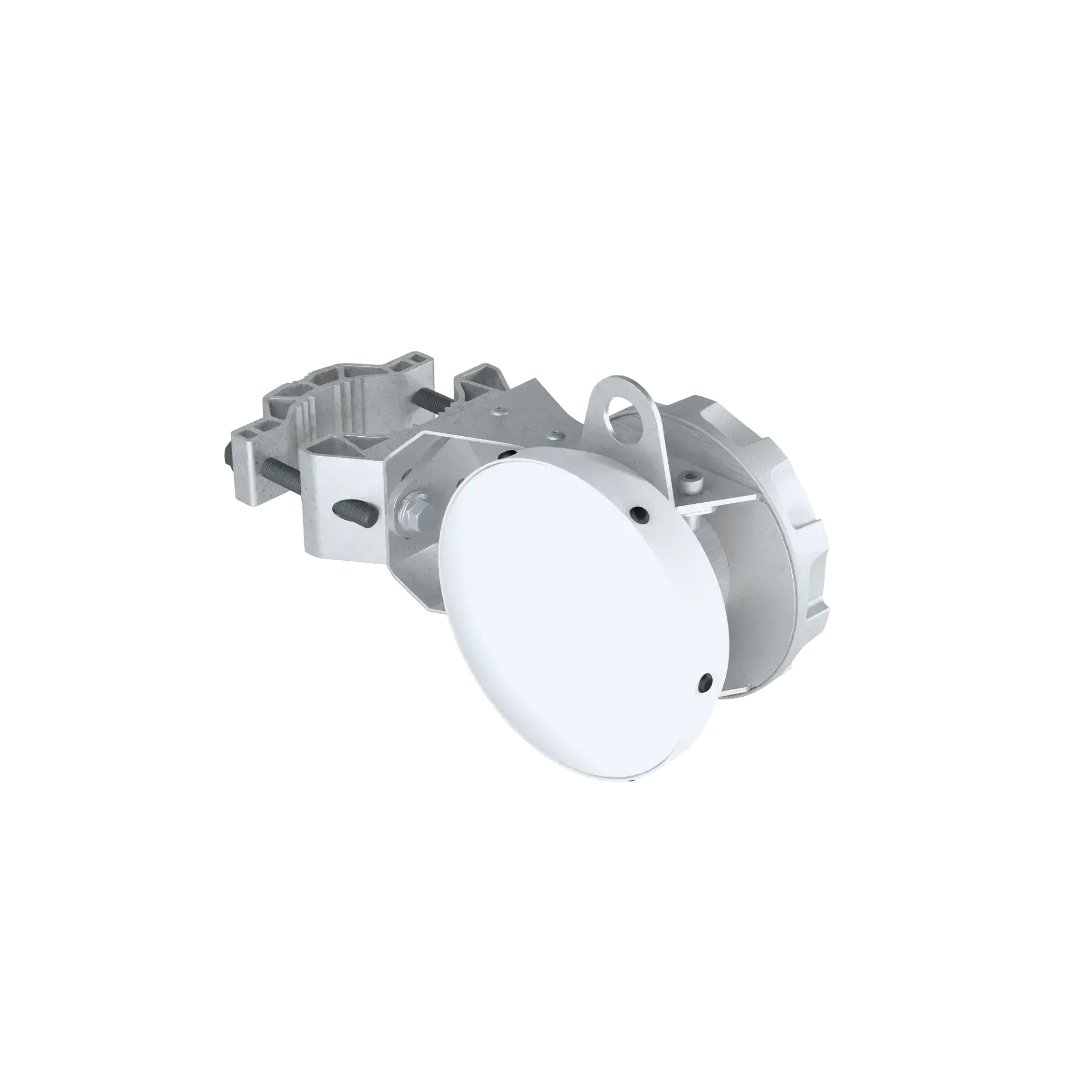

RF Elements SH90WB-GO Wideband Symmetrical Horn Antenna
RFE-SH90WB-GO
$ 173.75
- Frequency range: 4900–7200 MHz
- Gain: 10 dBi at 4900–6200 MHz; 11 dBi at 6200–7200 MHz
- Weight: 1.3 kg
Its wider beam and moderate gain make it an option for short-range coverage where subscribers or devices are spread across a larger angle.
Find the Right Fit with Our Team
The RF elements WB GO Series brings focused, balanced, and wide coverage options to 5 and 6 GHz networks. Whether you’re expanding an existing site or planning a new MicroPoP, the lineup gives you flexibility to match your antenna to the area you need to serve.
Choosing between the SH30WB-GO, SH60WB-GO, and SH90WB-GO starts with your coverage goals, subscriber locations, and site conditions. Connect with our team to discuss your deployment and find the WB GO model that fits your network.
